HAXEL Drill to Haptics
Bill of Materials (BOM) & Technical Notes
Project Overview

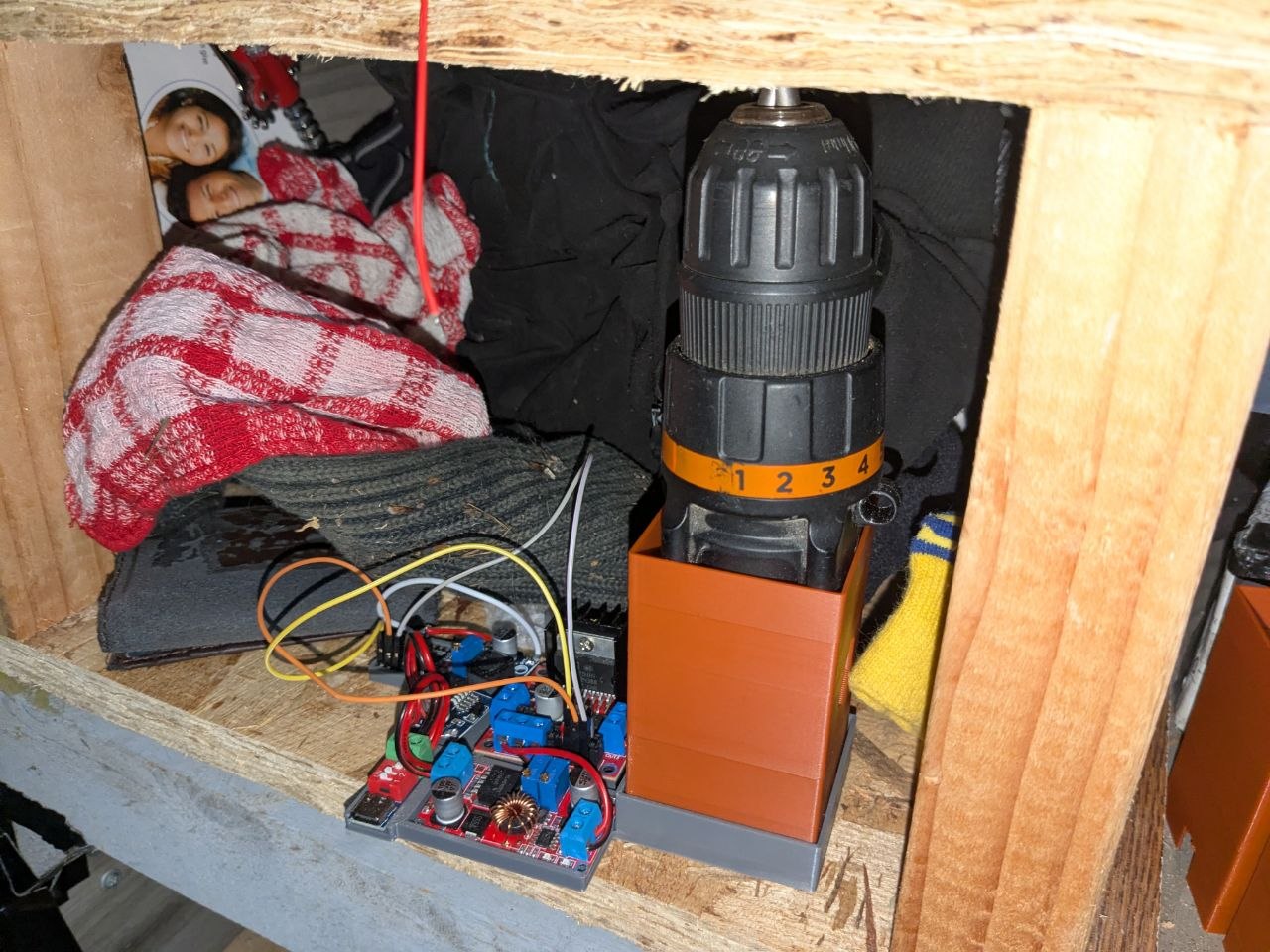

Assembled from a vintage hand drill donated to the workshop by Control+H, the Portland hackerspace.
A drill head mechanism was specifically chosen because the adjustable chuck can be clamped to any custom object to act as a dynamic, off-axis eccentric weight.
⚙️ Thermal & Current Protection Note:
The CC/CV step-down module limits the drill motor current to 0.75A and below—staying strictly within the H-bridge operating threshold to prevent thermal runaway and driver burnout!
Bill of Materials (BOM)
| Component | Description | Link / Reference |
|---|---|---|
| Power Delivery | USB-C PD Decoy Module | AliExpress |
| Microcontroller | ESP32-C3 SuperMini Board | AliExpress |
| Power Step-Down | DC-DC Buck Converter | AliExpress |
| Motor Driver | H-Bridge Motor Driver Module | AliExpress |
| Current Limiter | CC/CV Step-Down Charge Module (0.75A Limiter) | AliExpress |
| Chassis & Chuck | Hand Drill Frame (Control+H Portland Hackerspace) | Donated Workshop Hardware |
